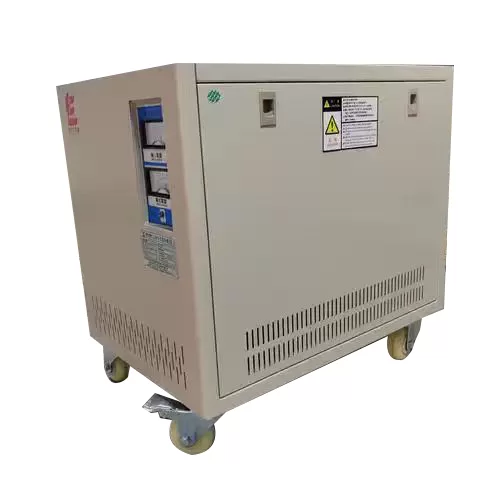

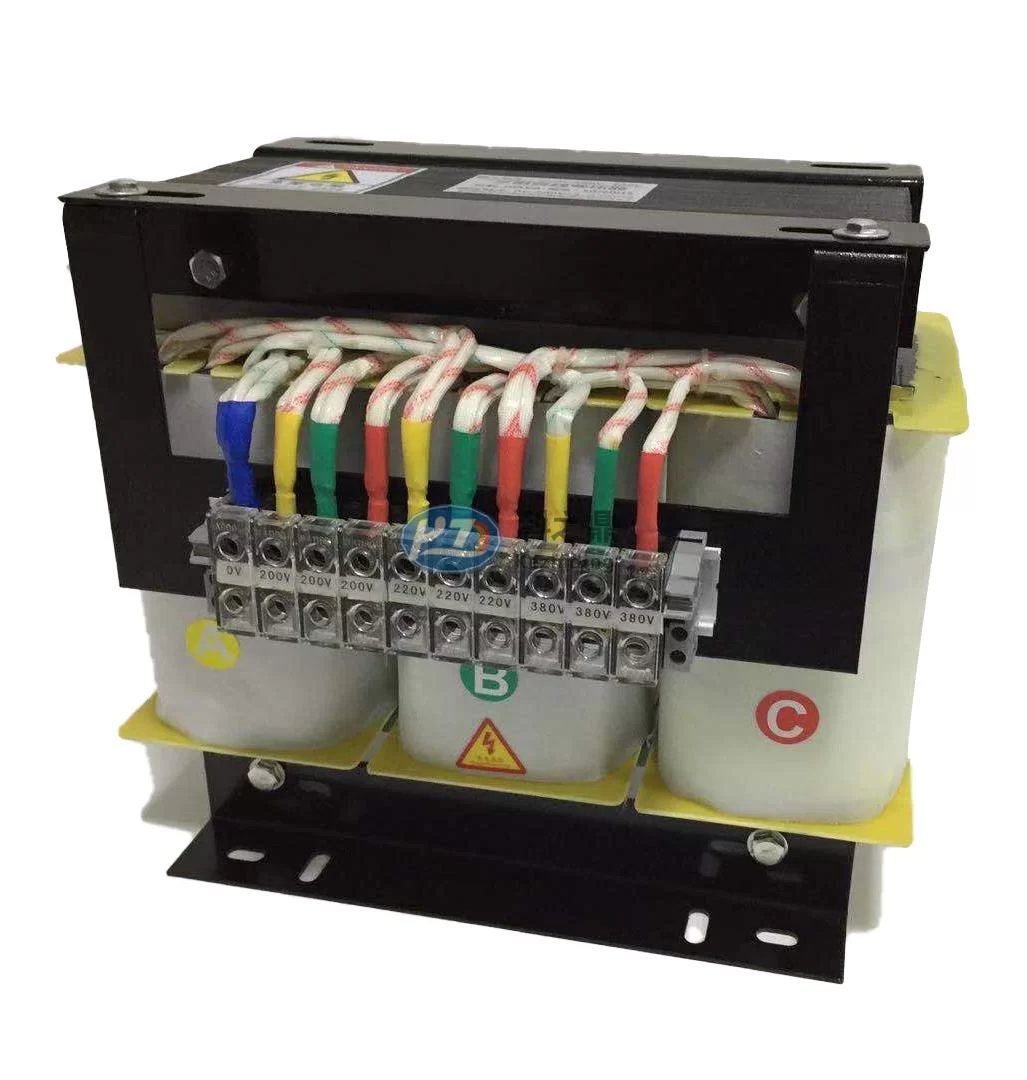

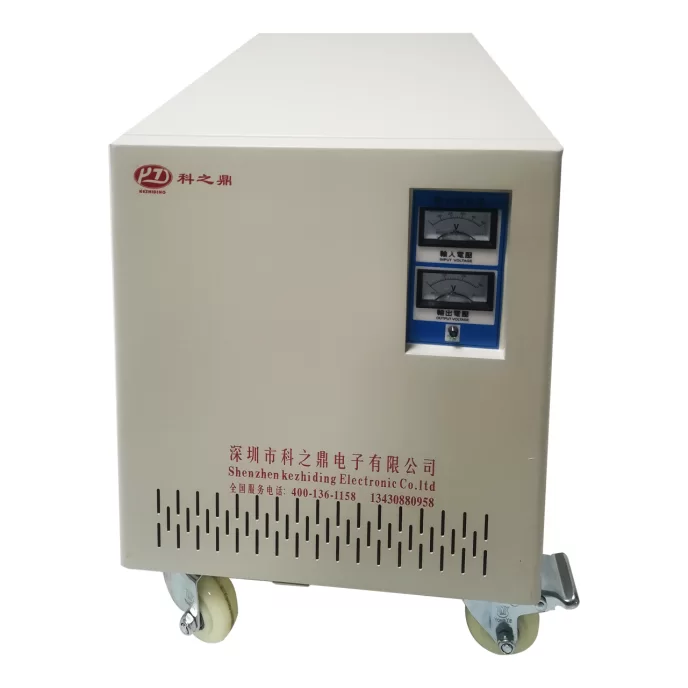

Our high-performance Dry Type Three Phase Transformers are precision-engineered to deliver exceptional voltage conversion, seamlessly transforming high-voltage sources into stable low-voltage power to meet diverse industrial load requirements. By integrating advanced dry-insulation technology, these units eliminate the need for oil, ensuring maximum operational safety and efficiency in environments where fire risks must be strictly mitigated.
Designed for maximum versatility, our transformers function as both step-down solutions for end-user equipment and step-up systems for efficient long-distance transmission, significantly reducing energy losses across power lines. From power plant distribution to critical industrial machinery, our solutions optimize electricity flow to ensure a reliable, stable, and sustainable power infrastructure.
| Phase Configuration | Three Phase | Cooling Method | Air Natural (AN) / Air Forced (AF) |
|---|---|---|---|
| Insulation Type | Dry Type (Cast Resin/Vacuum Pressure) | Frequency | 50Hz / 60Hz |
| Voltage Range | Customizable (Step-up/Step-down) | Winding Material | High-Conductivity Copper / Aluminum |
| Efficiency Class | High Efficiency / Low Loss | Protection Level | IP00 to IP23 (Optional Enclosure) |
| Standard Compliance | IEC / IEEE / ANSI Standards | Application | Power Distribution & Industrial Control |
Eliminates the risk of oil leaks and fire hazards, ensuring a safer environment for indoor installations.
Dry-type design removes the need for oil checks and filtration, drastically lowering long-term O&M costs.
Optimized core materials minimize hysteresis and eddy current losses during voltage conversion processes.
Provides a consistent voltage supply to sensitive loads, preventing failure from power fluctuations.
High power density allows for a significantly smaller footprint compared to traditional liquid-cooled units.
Sustainable construction with no toxic oils, simplifying disposal and recycling requirements.
Intelligent distribution of power across phases to prevent overloading and extend equipment lifespan.
Integrated temperature monitoring systems to trigger cooling fans and prevent thermal runaway.
Advanced synchronization tools to align transformer output with existing industrial grid phases.
| Metric | Oil-Immersed Transformer | Dry Type Transformer |
|---|---|---|
| Initial Cost | Lower | Moderate |
| Installation Cost | Higher (Fire walls needed) | Lower (Flexible placement) |
| Maintenance Expense | High (Oil testing) | Very Low (Dusting only) |
| Safety Risk | Fire/Leakage Hazard | Low Risk / Self-extinguishing |
| Total Ownership Cost | Higher over 10 years | Lower over 10 years |
Our engineering team is ready to provide stable and sustainable power solutions for your business.
