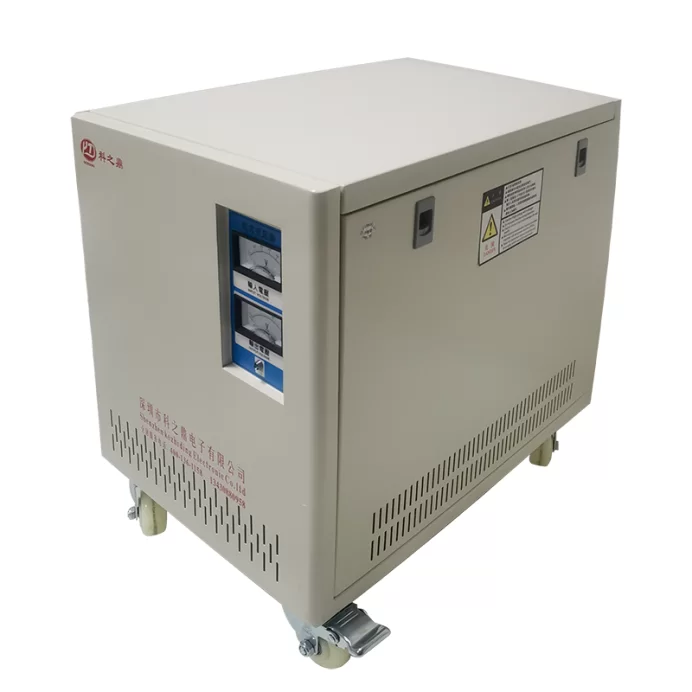

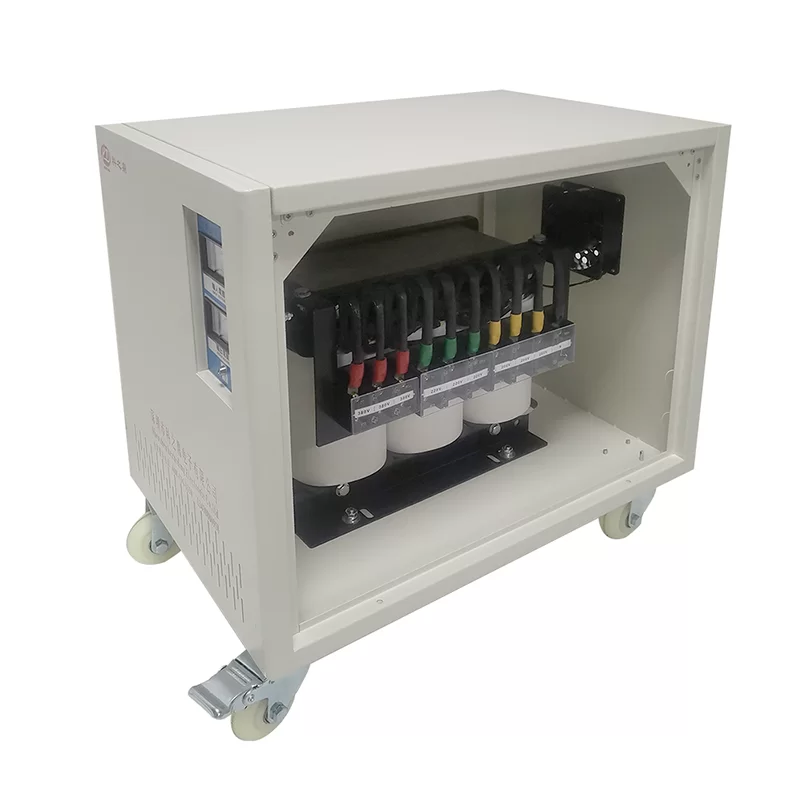

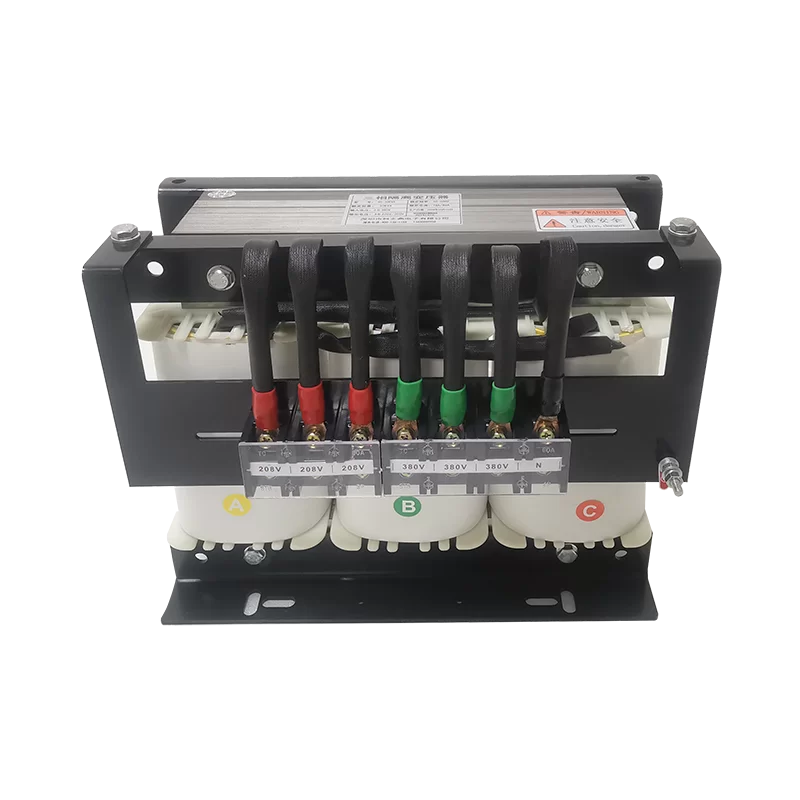

Our Three Phase Dry Type Transformers are high-performance voltage conversion solutions specifically engineered for three-phase AC power systems. These robust devices are designed to efficiently convert input high voltage to low voltage, providing critical electrical isolation and precise voltage matching to ensure the stable operation of your industrial machinery and electrical infrastructure.
Distinguished by an innovative "dry" design, these transformers eliminate the need for insulating oil. By utilizing natural air convection or forced air cooling systems, they fundamentally remove the risks of oil leakage and flammability. This advanced engineering not only enhances safety in sensitive environments but also significantly simplifies routine maintenance and reduces long-term operational overhead.
| Phase Configuration | Three Phase (3-Phase) | Cooling Method | Dry Type (Air Cooling) |
|---|---|---|---|
| Primary Function | Voltage Conversion / Isolation | Cooling Medium | Natural Air / Forced Air |
| Safety Feature | Oil-Free / Non-Flammable | Application | AC Power Systems |
| Maintenance Level | Low Maintenance | Insulation Type | Dry Resin/Air |
| Environmental Risk | Zero Oil Leakage Risk | System Compatibility | Industrial Electrical Grids |
Elimination of insulating oil removes fire hazards and leakage risks, making it ideal for indoor installations.
Dry design removes the need for oil testing, filtering, or gasket replacements, reducing downtime.
Engineered for stable voltage conversion and isolation in demanding three-phase AC environments.
Environmentally sustainable design without the risk of soil or water contamination from oil spills.
Supports both natural convection and forced air cooling depending on the load requirements.
Compact dry-type structure allows for easier placement within electrical rooms and buildings.
Real-time monitoring of transformer stock levels and specifications.
Analyze voltage efficiency and thermal performance data.
Automated notifications for scheduled inspection and cleaning.
Instant alerts for overheating or abnormal voltage fluctuations.
Lifecycle tracking from installation to decommissioning.
Dynamic adjustment of distribution to prevent system overload.
| Comparison Factor | Oil-Immersed Type | Dry Type Transformer |
|---|---|---|
| Fire Risk | High (Flammable Oil) | Negligible (Self-Extinguishing) |
| Maintenance Cost | Moderate (Oil Testing) | Very Low (Air Cleaning) |
| Environmental Impact | Risk of Leakage | Eco-Friendly/Clean |
| Installation Site | Outdoor/Isolated | Indoor/Flexible |
| Long-term ROI | Standard | High (Due to Lower OpEx) |
